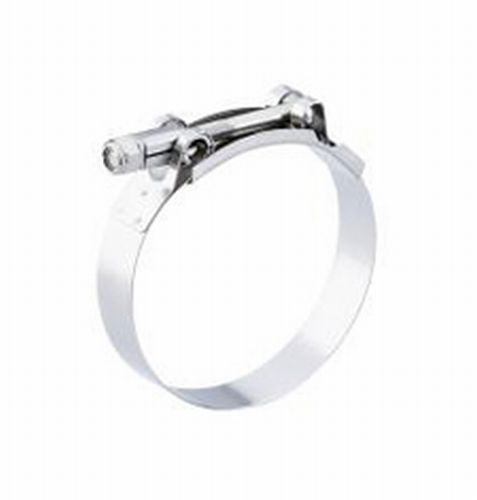

Breeze T-Bolt TB 163 1 5/8 - 1 7/8 Inch Range, 3/4" 301 SS Band fullscreenView Full

Breeze T-Bolt TB 163 1 5/8 - 1 7/8 Inch Range, 3/4" 301 SS Band

Pricing:
Item #: TB 163
Availability: In Stock
Min Qty: 2
Increment Qty: 2
Case Qty: 2
Qty:
-
+
Total = $7.98
Share:
Product Details
  • Used in industrial, automotive and marine applications
  • High strength clamping
  • Floating bridge liner
  • Per SAE standard J1508 Type "TB"
  • 3/4" (19 mm) band width
  • 201 Stainless Steel Band and housing
  • Zinc
Specs
Band Material: 301 SS
Screw Material: Zinc Plated Carbon Steel
Band Width: 3/4"
Min. Inches: 1 5/8
Max. Inches: 1 7/8
Min. mm: 41
Max. mm: 48
Torque Range: 150 in/lbs
Hex Screw: 7/16" Nut
Pack: 1
Unit: EA
Type: Heavy Duty Clamps
Clamp Durability: High Pressure|Automotive|High Vibration|Large Diameter|Soft Hose|Industrial|Commercial|High Strength|Diesel|Pipes|Hose
Max. Inches (Decimal): 1.875
Min. Inches (Decimal): 1.625
Environment: Dry|Indoors
