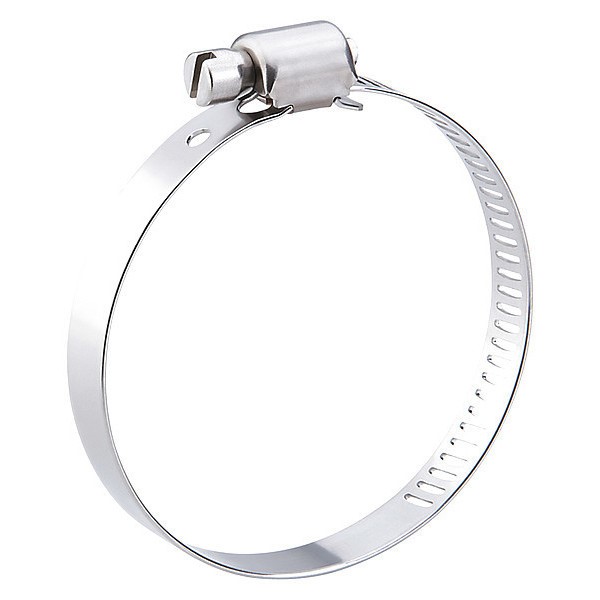

- For military vehicles and ordinances
- Meets Federal Supply Class 4730
- SAE Standard J1508 Type F
- 9/16" (14.2 mm) band width
- 5/16" (7.9 mm) slotted hex-head screw
- 301 Stainless Steel band and housing
- 410 Stainless Steel screw
Please note: Product quantities are not saved and will reset to 0 when you change filter options.
Subtotal: $0.00
Add All To Cart
Part #
Band Material
Screw Material
SAE
Band Width
Min. Inches
Max. Inches
Min. mm
Max. mm
Torque Range
Hex Screw
Pricing
Qty.
Total
Band Material: 301 SS
Screw Material: 410 SS
SAE: 6
Band Width: 9/16"
Min. Inches: 7/16
Max. Inches: 25/32
Min. mm: 11
Max. mm: 20
Torque Range: 45 in/lbs
Hex Screw: 5/16"
Packs of: 5
1-99 $2.02
100-299 $2.02
300-699 $1.97
700-1199 $1.92
1200-2799 $1.87
2800+ $1.72
Min. Quantity: 5
Inc. Quantity: 5
Case Pack: 5
Band Material: 301 SS
Screw Material: 410 SS
SAE: 12
Band Width: 9/16"
Min. Inches: 11/16
Max. Inches: 1 1/4
Min. mm: 17
Max. mm: 32
Torque Range: 45 in/lbs
Hex Screw: 5/16"
Packs of: 5
1-99 $2.04
100-299 $2.04
300-699 $1.99
700-1199 $1.94
1200-2799 $1.89
2800+ $1.73
Min. Quantity: 5
Inc. Quantity: 5
Case Pack: 5
Band Material: 301 SS
Screw Material: 410 SS
SAE: 24
Band Width: 9/16"
Min. Inches: 1 1/16
Max. Inches: 2
Min. mm: 27
Max. mm: 51
Torque Range: 45 in/lbs
Hex Screw: 5/16"
Packs of: 5
1-99 $2.07
100-299 $2.07
300-699 $2.02
700-1199 $1.97
1200-2799 $1.91
2800+ $1.76
Min. Quantity: 5
Inc. Quantity: 5
Case Pack: 5
Band Material: 301 SS
Screw Material: 410 SS
SAE: 36
Band Width: 9/16"
Min. Inches: 1 13/16
Max. Inches: 2 3/4
Min. mm: 46
Max. mm: 70
Torque Range: 45 in/lbs
Hex Screw: 5/16"
Packs of: 5
1-99 $2.17
100-299 $2.17
300-699 $2.12
700-1199 $2.06
1200-2799 $2.01
2800+ $1.84
Min. Quantity: 5
Inc. Quantity: 5
Case Pack: 5
Band Material: 301 SS
Screw Material: 410 SS
SAE: 48
Band Width: 9/16"
Min. Inches: 2 9/16
Max. Inches: 3 1/2
Min. mm: 65
Max. mm: 89
Torque Range: 45 in/lbs
Hex Screw: 5/16"
Packs of: 5
1-99 $2.86
100-299 $2.86
300-699 $2.79
700-1199 $2.72
1200-2799 $2.65
2800+ $2.43
Min. Quantity: 5
Inc. Quantity: 5
Case Pack: 5
Band Material: 301 SS
Screw Material: 410 SS
SAE: 60
Band Width: 9/16"
Min. Inches: 3 5/16
Max. Inches: 4 1/4
Min. mm: 84
Max. mm: 108
Torque Range: 45 in/lbs
Hex Screw: 5/16"
Packs of: 5
1-99 $3.10
100-299 $3.10
300-699 $3.02
700-1199 $2.95
1200-2799 $2.87
2800+ $2.64
Min. Quantity: 5
Inc. Quantity: 5
Case Pack: 5
Band Material: 301 SS
Screw Material: 410 SS
SAE: 104
Band Width: 9/16"
Min. Inches: 4 1/8
Max. Inches: 7
Min. mm: 105
Max. mm: 178
Torque Range: 45 in/lbs
Hex Screw: 5/16"
Packs of: 5
1-99 $4.05
100-299 $4.05
300-699 $3.95
700-1199 $3.85
1200-2799 $3.75
2800+ $3.44
Min. Quantity: 5
Inc. Quantity: 5
Case Pack: 5
