Breeze T-Bolt Spring-Loaded Standard Duty B9226-0225 2 1/4 - 2 9/16 Inch Range, 3/4" 301 SS Band fullscreenView Full

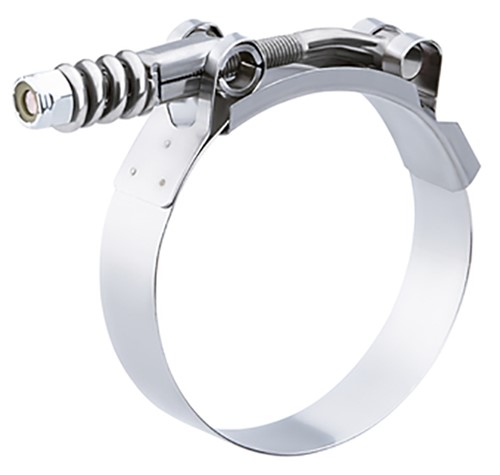

Spring-Loaded T-Bolt B9226-0225 2 1/4"- 2 9/16" Range, 3/4" 301 SS Band

Pricing:
Item #: B9226-0225
Availability: In Stock
Min Qty: 2
Qty:
-
+
Total = $10.64
Share:
Product Details
  • Used for industrial, marine and vehicle applications to compensate for thermal expansion of hose or fitting connections
  • B9226 - Standard duty small spring
  • Floating bridge liner
  • Per SAE standard J1508 Type "SLTB"
  • 3/4
Specs
Band Material: 301 SS
Screw Material: Zinc Plated Carbon Steel
SAE: 44
Band Width: 3/4"
Min. Inches: 2 1/4
Max. Inches: 2 9/16
Min. mm: 57
Max. mm: 65
Torque Range: 150 in/lbs
Hex Screw: 7/16" Nut
Pack: 1
Unit: EA
Type: Constant Tension Clamps
Clamp Durability: High Pressure|Automotive|Fluxuating Temperatures|High Vibration|Large Diameter|Soft Hose|Industrial|Commercial|High Strength|Diesel|Pipes|Hose
Max. Inches (Decimal): 2.563
Min. Inches (Decimal): 2.250
Environment: Dry|Indoors
