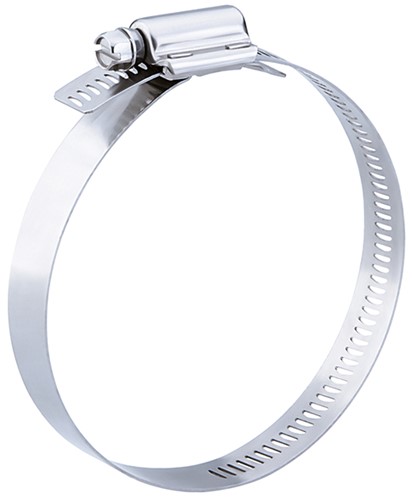

Breeze Hi-Torque Extended Range HP 5 6 1/8 - 9 1/8 Inch Range, 5/8" 304 SS Band fullscreenView Full

Breeze Hi-Torque Extended Range HP 5 6 1/8"- 9 1/8" Range, 5/8" 304 SS Band

Pricing:
Item #: HP 5
Availability: In Stock
Min Qty: 10
Increment Qty: 10
Case Qty: 10
Qty:
-
+
Total = $8.14
Share:
Product Details
  • Used in OEM or other production assembly applications
  • Extended range gives clamp multipurpose uses
  • Eight screw threads engaged simultaneously for torqueing drive, sealing pressure and vibration resistance
  • Three times strong
Specs
Band Material: 304 SS
Screw Material: 410 SS
Band Width: 5/8
Min. Inches: 6 1/8
Max. Inches: 9 1/8
Min. mm: 156
Max. mm: 232
Torque Range: 150 in-lb
Hex Screw: 5/16"
Pack: 10
Unit: EA
Type: Heavy Duty Clamps
Clamp Durability: High Pressure|High Vibration|Industrial|Commercial|High Strength|Ducting|Pipes|Hose
Max. Inches (Decimal): 9.125
Min. Inches (Decimal): 6.125
Environment: Dry|Indoors|Damp|Outdoors
