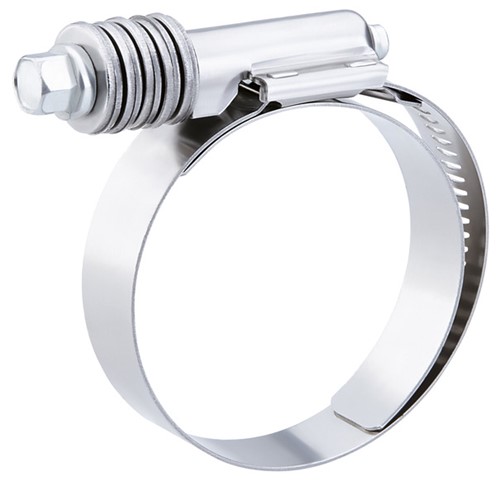

Breeze Constant-Torque CT 9480 4 - 5 1/2 Inch Range, 9/16" 304 SS Band fullscreenView Full

Breeze Constant-Torque CT 9480 4 - 5 1/2 Inch Range, 9/16" 304 SS Band

Pricing:
Item #: CT 9480
Availability: In Stock
Min Qty: 100
Increment Qty: 100
Case Qty: 100
Qty:
-
+
Total = $20.21
Share:
Product Details
  • Used in applications that require thermal expansion and contraction
  • Aero-Seal construction for use on smaller diameters
  • Liners are integral extensions of the band that lie true to the clamping axis
  • Monitors and then com
Specs
Band Material: 304 SS
Screw Material: 410 SS
SAE: 80
Band Width: 9/16"
Min. Inches: 4
Max. Inches: 5 1/2
Min. mm: 102
Max. mm: 140
Torque Range: 70 in/lbs
Hex Screw: 5/16" Hex Cap
Pack: 1
Unit: EA
Type: Constant Tension Clamps
Clamp Durability: High Pressure|Fluxuating Temperatures|Soft Hose|Industrial|Commercial|Hose
Max. Inches (Decimal): 5.500
Min. Inches (Decimal): 4.000
Environment: Dry|Indoors|Damp|Outdoors
