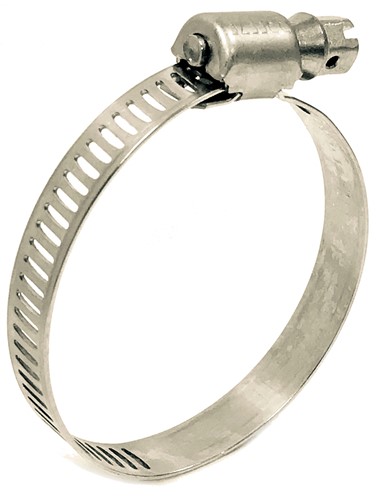

Breeze Aerospace NAS1922-0925-3H 8.94 - 9.72 Inch Range, 5/16" 301 SS Band fullscreenView Full

Breeze NAS1922-0925-3H 8.94" - 9.72" Range, 5/16" 301 SS Band

Pricing:
Item #: NAS1922-0925-3H
Availability: In Stock
Min Qty: 100
Increment Qty: 100
Case Qty: 100
Qty:
-
+
Total = $34.65
Share:
Product Details
  • Used in aircraft applications due to light weight
  • Known as Aerospace clamps or "MIL" Spec Clamps/NAS1922 Clamps
  • Federal Supply Class 4730
  • 5/16" (7.9mm) band width
  • 3 designates hex head screw
  • H designates loc
Specs
Band Material: 301 SS
Screw Material: 410 SS
Band Width: 5/16"
Min. Inches: 8.94
Max. Inches: 9.72
Min. mm: 227
Max. mm: 247
Torque Range: 18 in/lbs
Hex Screw: Hex Head w/Lockwire Hole
Pack: 100
Unit: EA
Type: Mil Spec/Aerospace Clamps
Clamp Durability: Aircraft|Aerospace
Max. Inches (Decimal): 9.720
Min. Inches (Decimal): 8.940
Environment: Dry|Indoors|Damp|Outdoors
