Spring-Loaded T-Bolt B9226-0388 3-7/8" - 4-3/4" Range, 3/4" SS Band fullscreenView Full

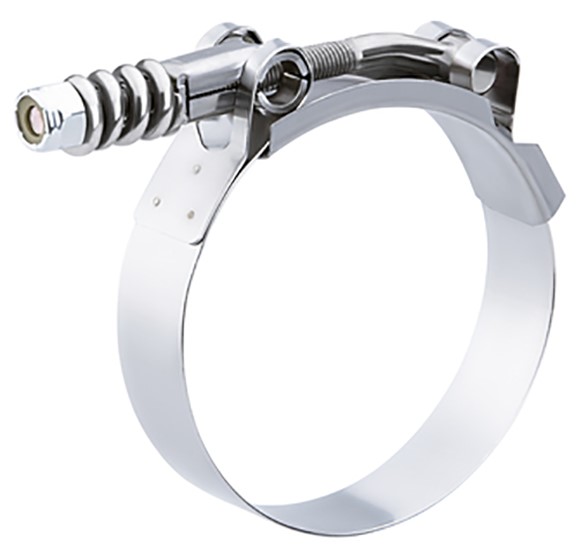

Spring-Loaded T-Bolt B9226-0388 3-7/8" - 4-3/4" Range, 3/4" SS Band

Pricing:
Item #: B9226-0388
Availability: In Stock
Qty:
-
+
Total = $11.29
Share:
Product Details
  • Used for industrial, marine and automotive applications to compensate for thermal expansion of hose or fittings
  • B9226 Standard duty small spring
  • Per SAE Standard J1508 Type "SLTB"
  • 3/4" band
Specs
Band Material: 301 SS
Screw Material: Zinc Plated Carbon Steel
SAE: 96
Band Width: 3/4"
Min. Inches: 3-7/8"
Max. Inches: 4-3/16"
Min. mm: 98
Max. mm: 106
Torque Range: 150 in/lbs
Hex Screw: 7/16" Nut
Unit: EA
Type: Constant tension clamp
